HS-2700

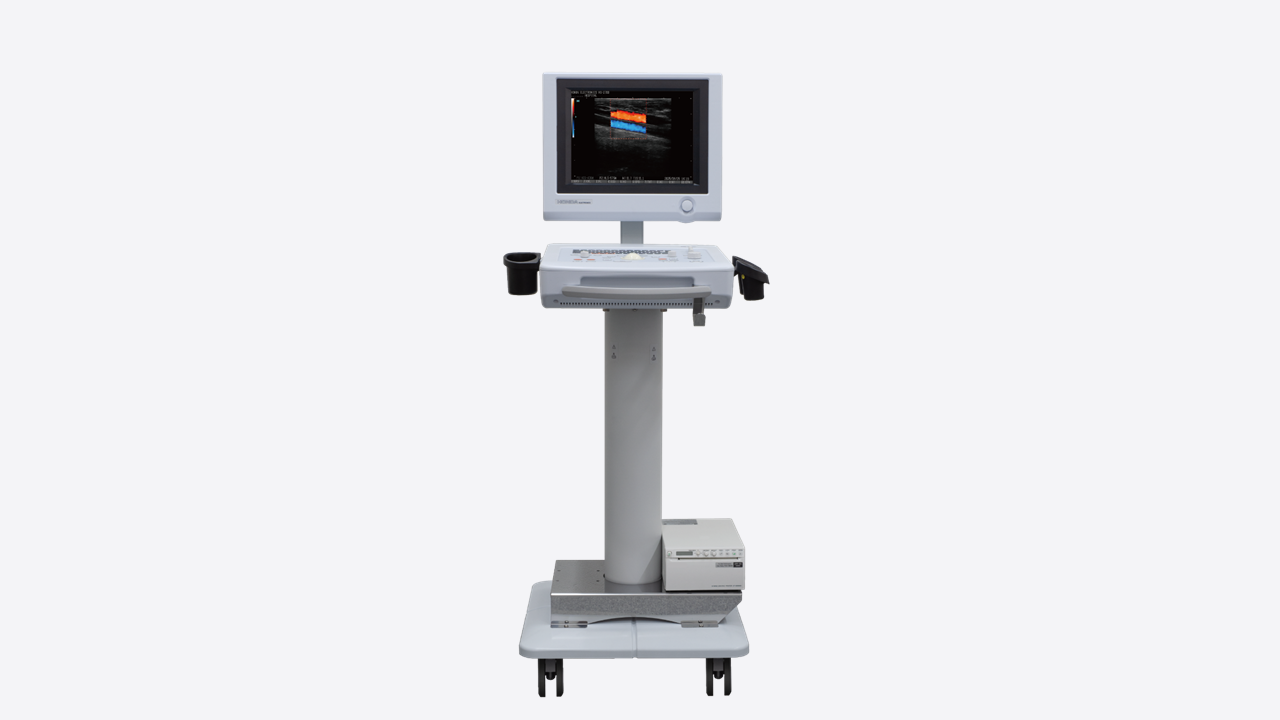

HS-2700正面(前面)
*Printer is not included in the standard configuration.

HS-2700 PROMOTION VIDEO

Overview

Doppler ultrasound system made in Japan

  • 12.1 inch high resolution LCD.

  • Simple and easy-to-use keyboard design.

  • Sharp and smooth image display by H-res.

  • Large casters make it easy to move.

Ultrasound Image

H res

H-res (Our Resolution Technology)

Featuring advanced image processing technology, the system delivers optimal settings for any observation purpose with effortless operation. Select the presets for both deep and superficial imaging with ease.

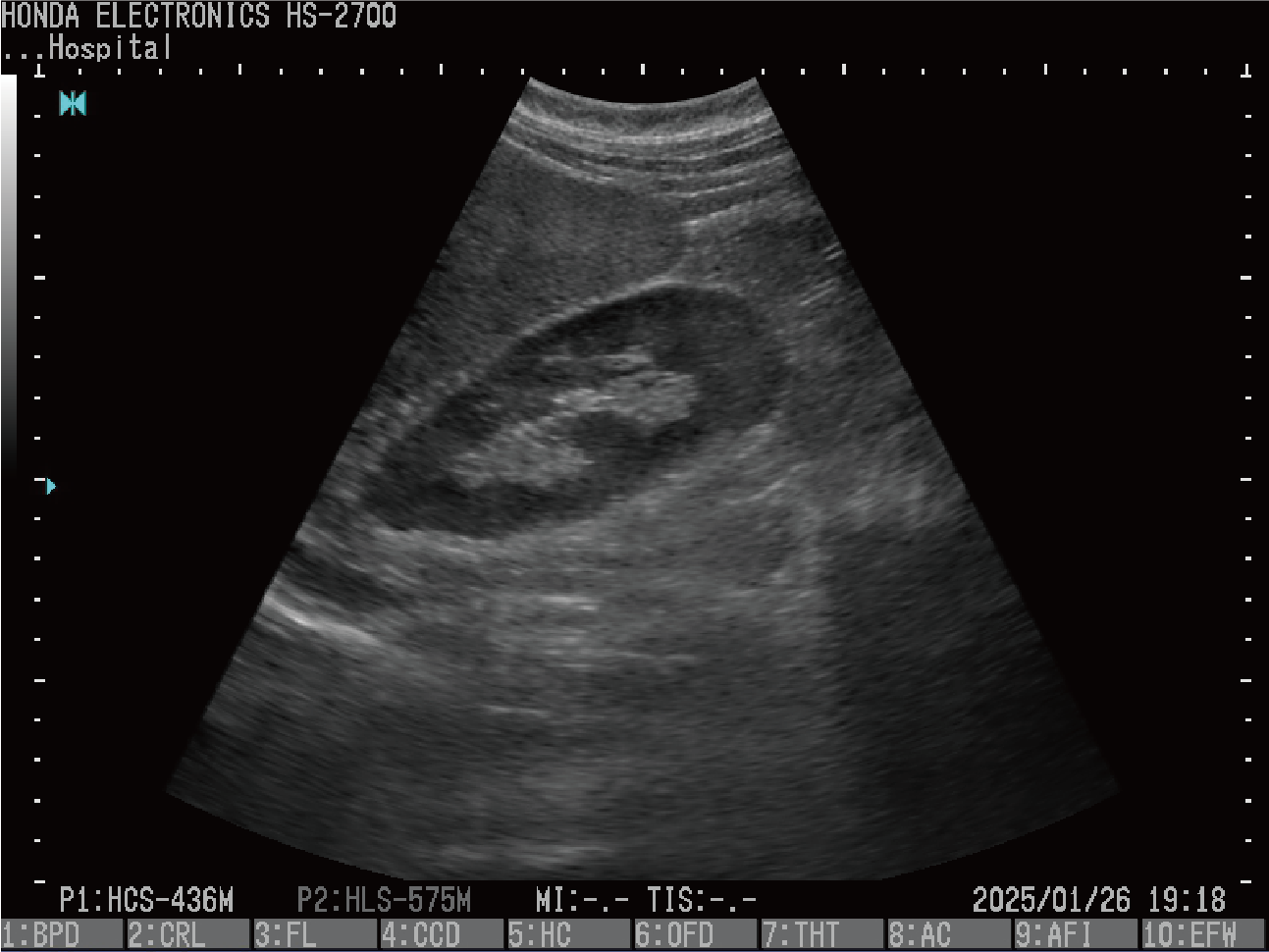

HS-2700 (new)202579_4

Kidney

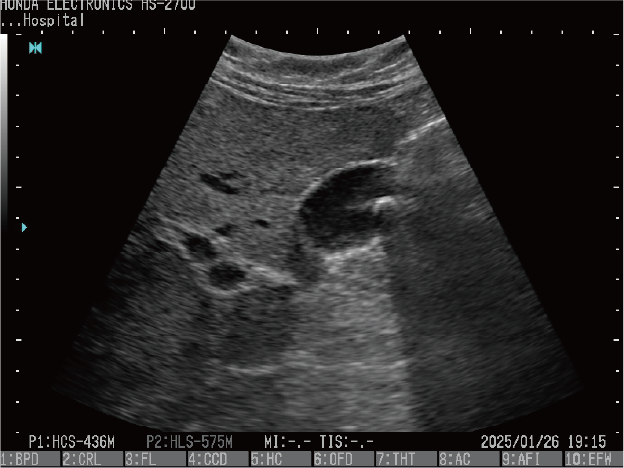

HS-2700 (new)202579_5

Stone in Kidney

Doppler mode

The HS-2700 has three types of Doppler functions: CFM (Color Flow Mapping), PD (Power Doppler), and PW (Pulse Wave Doppler). PW mode includes Doppler sounds.

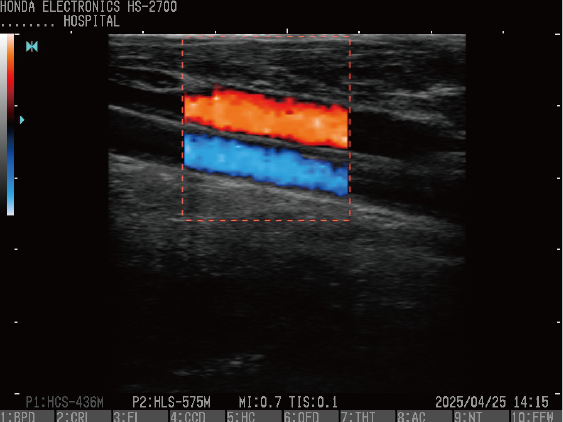

HS-2700 (new)202579_7

CFM (Color Flow Mapping)
Probe: HLS-575M

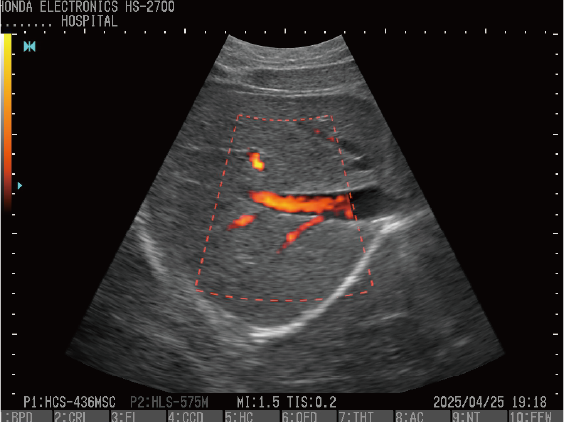

HS-2700 (new)202579_8

PD (Power Doppler)
Probe: HCS-436MSC

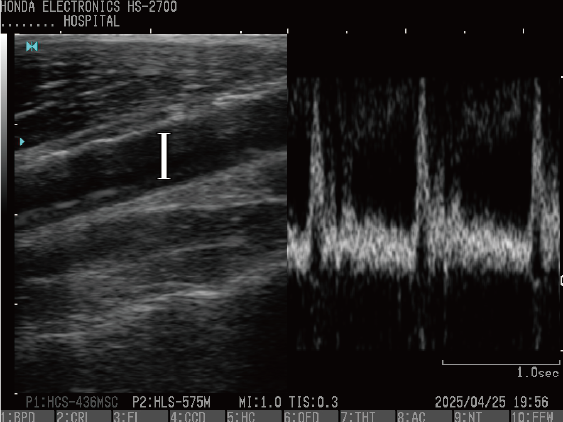

HS-2700 (new)202579_9

PW (Pulse Wave Doppler)
Probe: HLS-575M

Preset Registration

Favorite settings can be easily registered and recalled.

Body marks

Body marks

A wide variety of body marks are provided, enabling easy identification and storage of diagnostic sites.
*Image is one example.

Data Storage

Data storage by USB memory stick

Both still and moving images can be saved to an external USB memory device and viewed on a PC.
Up to approximately 100 images can be stored in the main memory.

Catalog

HS-2700June25,2025-1

Free Download

You can download our product catalog in PDF format fhere.
We hope you will find it useful.

Read more

*Specifications and appearance in this catalog are subject to change without notice.

Specifications

Scanning method Convex / Linear Electronic Scan
Number of Probe Channel 96 Channels,128 Channels
Number of
Simultaneous Drive		 Transmitter 64 Channels (Max)
Receiver : 32 Channels (Max)
Display Mode B Mode, B/B Mode, B/M Mode, B/Z Mode, M Mode
Range 3.5MHz
5MHz or more

0-2-24cm (1cm Step Adjustable)
0-2-16cm (1cm Step Adjustable)
Focusing Methodr 4-stage Transmission Focus
Continuous Dynamic Receiving Focus
Rated Ultrasound Frequency 2.8, 3.5, 5.0, 7.5, 9.0, 10.0, MHz
Display Monitor 12.1inch color LCD
Acoustic Power Adjustment 20-100% (10% Step Adjustable)
Gray Scale 256 Levels
Image Display Up/Down, Left/Right
Doppler
 CFM(Color Flow Mapping), PD(Power Doppler) , PW(Pulse Wave Doppler)
Image Adjustment B-Gain: 36-100dB (1dB Step Adjustable)
M-Gain: 36-100dB (1dB Step Adjustable)
B-Dynamic Range: 35-95dB (1dB Step Adjustable)
M-Dynamic Range: 35-95dB (1dB Step Adjustable)
Doppler-Gain: 15-100 (5 Step Adjustable)
Doppler-Speed Range: 1/2, 1, 2, 4, 8, 16
STC: 8 segments
correction 5 type
H-res: OFF, Detail1, Detail2, Detail3, Mild, Resolution,
(Image Enhancement) Penetration, Clarity, Boundary, Anatomy
Sweep Speed in M
Mode		 1/1, 1/2, 1/4, 1/8, 1/16(*)
*B/M-Mode: (1/1) is 1 second per frame.
*M-Mode : (1/1) is 2 seconds per frame.
Measuring Function Distance : 8 Measurements (Max)
Area/Circumference : 4 Measurements (Max)
Volume : 1 Measurements
Diagnosis/
Graph Display		 BPD、CRL、FL、CCD、HC、OFD、THT、GS、AC、FTA、GSV、AFI、
and others
Estimating Weight Hansmann Method, Hadlock Method,
Tokyo Univ. Method, Osaka Univ. Method, and others
Data Storage Still Image (JPEG): Internal (200 Images max.) / External USB memory
ditto (DICOM) : Internal (200 Images max.) / External USB memory
Moving Image (AVI) : Internal (10 videos max.) / External USB memory
Character Display

Hospital Name (40 Characters),
ID Information (ID: 26 Characters, Name: 30 Characters, Age),
Date, Time, Probe Type, Current Setting Information
Power Source

AC Adapter: AC100-240V,50Hz/60Hz 15VDC,100VA
Dimension

500mm(Width)× 480mm(Depth)）× 1200mm(Height)
Net Weight

Net Weight: Approx. 20kg (Excluding probe)
Probes

Convex probe 5.0/3.5/2.8MHz 60R HCS-436M

                         5.0/3.5/2.8MHz 60R HCS-436MSC

Linear Probe 10.0/7.5/5.0MHz 50mm HLS-575M

Transvaginal Probe 10.0/7/5/5.0MHz HCS-4710MV
Accessories

AC Adaptor, Power Cable, Ultrasound Gel

Probes

Convex probe

Convex probe
Type name HCS-436M
Frequency 5.0/3.5/2.8MHz
Radius (sensor part) 60R
Cable length 2m
Convex probe
Type name

HCS-436MSC

*Single crystal probe
Frequency 5.0/3.5/2.8MHz
Radius (sensor part) 60R
Cable length 2m

Micro Convex Probe

Linear Probe

Linear Probe
Type name HLS-575M
Frequency 10.0/7.5/5.0MHz
Width (sensor section) 50mm
Cable length 2.2m

Linear Probe

Transvaginal probe

Transvaginal probe
Type name HCS-4710MV
Frequency 9.0/7.5/5.0MHz
Radius (sensor part) 10R
Cable length 2m
