HS-1600 [Doppler and T-type probe compatible models

HS-1600 [Doppler and T-type probe compatible models

Special feature

H res

Top Class Ultrasound Imaging

Although portable, the ultrasound image quality is top class.
The ultrasound images are of top-class quality, yet are portable, and clearly show the condition of the diagnostic site down to the smallest detail.

Honda's Unique Image Processing Technology
''H-res''(Our Resolution Technology)

*Resolution visualizes delicate tissue structure in shallower region.
*Penetration visualizes good resolution in deeper organs.
*Boundary visualizes bones for observation.
*Clarity reduces the noise in blood vessel.
*Mild reduces the image enhancement effect.
*OFF has direct ultrasound image.

Doppler mode

Even when using the Color Doppler (CFM) and Power Doppler (PD) functions,
the quality of black-and-white ultrasound images is not degraded.
(Compatible with HLS-882MT, HCS-736M, HCS-8712M, HLS-884M, and HCS-7710MV)

Doppler mode

Probe: HLS-882MT
H-res: Anatomy

1503_file

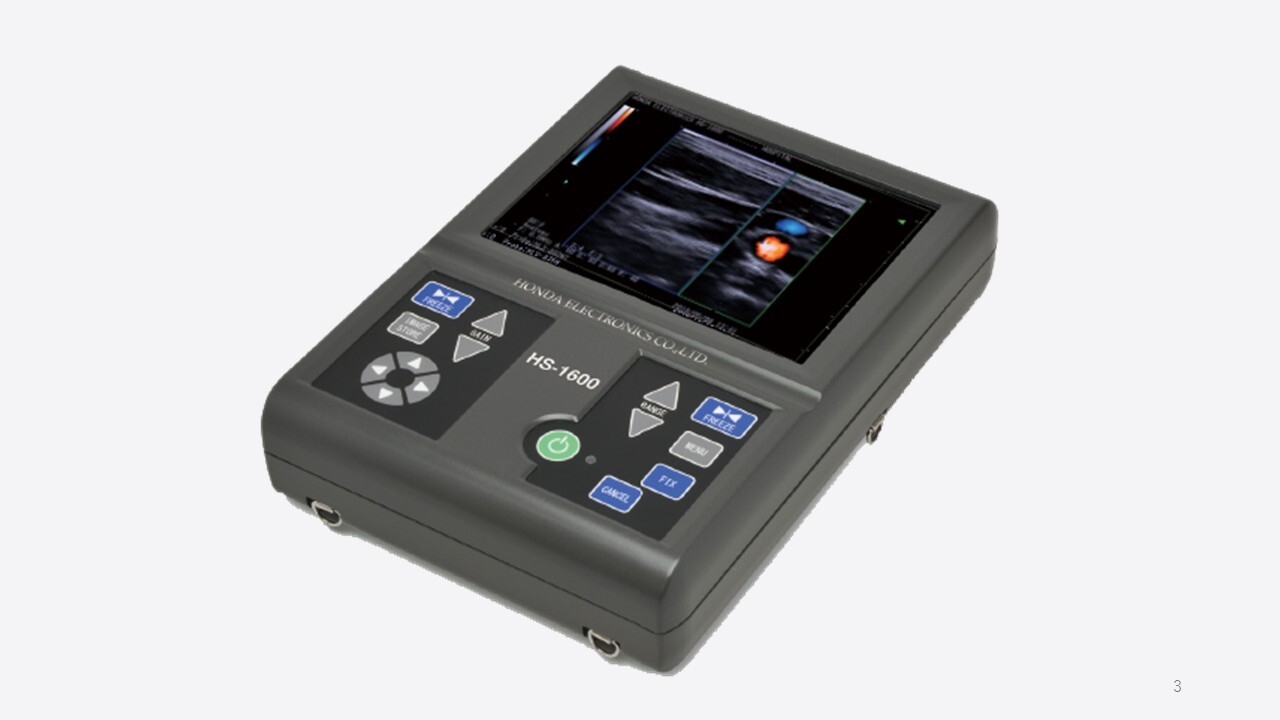

Small body for easy portability

The lightweight, compact body weighing only 3 kg (excluding the probe) makes it easy to carry and reduces the burden on the user during house calls and outdoor examinations.

Both battery and AC power usable

Integrated high performance lithium ion battery in the body realizes 3hours use in the place without power supply. Equipped report function of battery. lasting time makes battery sign lights to inform when lasting time becomes short.

CD

Adoption of high-function LCD that can be used anywhere

High luminance liquid crystal display with glass bonding treatment enhances visibility, diagnosis images are clearly projected even under the direct sunlight. Liquid crystal display gets no fogged even when temperatures and humidity varies rapidly.

Wide viewing field

Wide viewing field of 170° vertically and horizontally

Wide viewing angle liquid crystal display has 170°angle in horizontal and vertical. It made free angle diagnosis possible in limited operating environments.

Preset register

Favorite presetting can be registered simply and recalled easily.

Body mark

Body mark

Variety of body marks are prepared to supports various diagnostic scenes.
※Sample pictures.

USB port

Movie file and still image can be stored to the USB memory and accessed in personal computers.
Approx. 100 images are stored in the system memory.

1808_file

Simple operation

Minimum number of operation buttons or keys made interface simpler, easily operated.

Optional parts

Trolley

Trolley

Stand

Stand

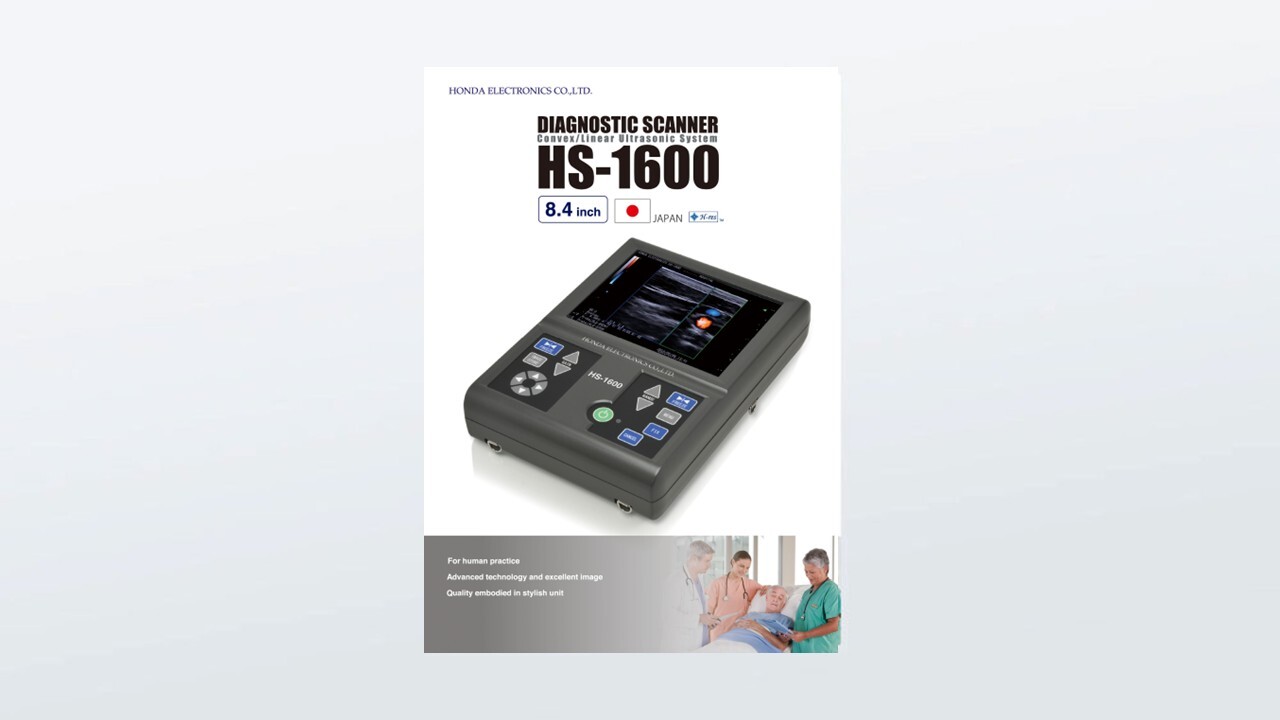

Catalog

hs1600 catalog

Free Download

You can download our product catalog in PDF format from this button.
We hope you will find it useful.

Read more

Specifications

Scanning Method Linear/Convex Electric Scan
Display Mode B, B/B, B/M. M, B/Z
Range
3.5MHｚ
More than 5MHz

0〜2-24cm (1cm step）
0〜2-16cm (1cm step)
Beam Focus Method Full Digital Method
4 Stages Dynamic Transmission Focus
Dynamic Receiving Focus
Ultrasound Frequency Rate 2.8〜11.0MHz
Display Monitor 8.4inch Color Liquid Crystal
Wide range viewing angle （Horizontal：170°　Vertical：170°）
Image Adjustment Up/Down, Left/Right
Image Adjustment B-Gain, M-Gain：36〜100db　1db step
Dynamic Range：35〜95db　10db step（1db adjustable）
STC：5styles
Accoustic Power：20〜100％（10％step）
γ correction：5styles
H-res（Image Enhancement）：OFF, Detail1, Detail2, Mild, Detail3,
Resolution, Penetration, Clarity, Boundary, Anatomy
Sweep Speed (M-Mode )：5steps
Doppler CFM, PD (Avairable for HLS-882MTY, HCS-736M, HCS-8712M, HLS-884M, HCS-7710MV, )
Doppler display area Vertical mode, Box mode
*Not available when HLS-882MT is connected.
Cine Memory 255 frames
Measurement Function Distance, Circumference, Area, Volume, Hip Joint, Histogram,
Pregnancy week, Velocity, LV Calculation
Character Display Hospital Name(40), Patient Name(30), ID(26), Age, Sex
DOB, Date, Time, Probe Type,
Range, Gain, Acoustic Power, Frequency, Dynamic Range, Gamma, H-res,
Gray Scale, Focus Information
Probe Connector x1
Dimension 220mm（W）ｘ308mm（H）ｘ69mm（D）
Net Weight 3kg approx.（Excluding Probe）
Power Source AC Adapter　100〜240V　50/60Hz 63VA
Battery　14.8V　5000mAh
Data Strage Still Image（JPEG）　Internal（100 image max ）/External USB memory
Still Image（DICOM）　External USB memory
Moving Image（AVI）　External USB memory
Probes Linear Probe （11.0/8.5/6.0MHz 40mm）HLS-884M
Micro Convex Probe （9.0/7.5/5.0MHz 12R）HCS-8712M
Convex Prove（5.0/3.5/2.8MHz 60R）HCS-736M
Trans vaginal probe （9.0/7.5/5.0MHz 12R）HCS-7710MV
T-Shaped probe (11.0/8.5/6.0MHz 15mm+25mm) HLS-882MT
Accessories Shoulder Belt, AC Adapter and Power Cord, Battery Charger,
Battery Pack, Ultrasound Gel
Option Carrying Bag, Trolley

Probe

T-Shaped probe

T-type probe
Type name HLS-882MT/HLS-882MT (T Shaped)
Frequency 11.0/8.5/6.0MHz
Radius (sensor part) 15mm＋25mm
Cable length 2m/2m
Doppler Doppler-compatible probes

Convex probe

Convex probe
Type name HCS-736M
Frequency 5.0/3.5/2.8MHz
Radius (sensor part) 60R
Cable length 2m
Doppler Doppler-compatible probes

Linear Probe

Linear Probe
Type name HLS-884M
Frequency 11.0/8.5/6.0MHz
Width (sensor section) 40mm
Cable length 2m
Doppler Doppler-compatible probes

Micro Convex Probe

Micro Convex Probe
Type name HCS-8712M
Frequency 9.0/7.5/5.0MHz
Radius (sensor part) 12R
Cable length 2m
Doppler Doppler-compatible probes

Transvaginal probe

Transvaginal probe
Type name HCS-7710MV
Frequency 9.0/7.5/5.0MHz
Radius (sensor part) 10R
Cable length 2m
Doppler Doppler-compatible probes

Gallery

Doppler (T-Shaped Probe HLS-882MT）

Carotid artery

Part：Carotid artery
H-res：Anatomy

Carotid artery

Part：Carotid artery
H-res：Anatomy

Radial artery

Part：Radial artery
H-res：Anatomy

Ulnar vein

Part：Ulnar vein
H-res：Anatomy

Median nerve

Part：Median nerve
H-res：Resolution

Brachial plexus

Part：Brachial plexus
H-res：Boundary

Thumb Tendon

Part：Thumb Tendon
H-res：Resolution

Middle finger tendon
Part：Middle finger tendon
H-res：Resolution

Convex probe(HCS-736M)

Liver
Part：Liver
H-res：Penetration
Kidney

Part：Kidney
H-res : Detail1

Linear Probe(HLS-884M)

Shoulder

Part：Shoulder
H-res：Boundary

Elbow

Part：Elbow
H-res：Boundary

Tendon of middle finger (short axis)
Part：Tendon of middle finger (short axis)
H-res：Resolution
Tendon of middle finger (long axis)
Part：Tendon of middle finger (long axis)
H-res：Resolution
