WG Series [Separate type]
Product Features
All-round Cleaner for a wide range of cleaning applications

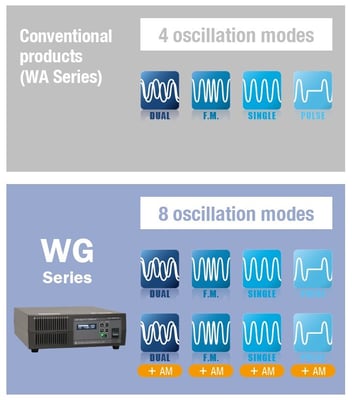

With newly oscillation mode, making various cleaning performance

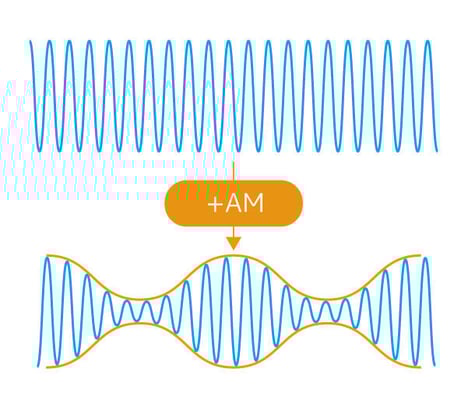

8 oscillation modes which combines 4 modes with AM (amplitude modulation) mode can be selected in accordance with various form of work-piece and diverse contamination. AM mode is also make it possible uniform cleaning.
Adjacent dual-frequency switching oscillation mode
for cleaning inside fine tubes or through-hole board
FM oscillation mode
for uniform cleaning and minimizing damage
Single frequency oscillation mode
for removing persistent contamination
Pulse oscillation mode
for gentle cleaning and degassing
Embedded timer function
Cleaning time can be adjusted starting from 1min up to 99min preventing from wasting power consumption and damaging work-pieces.
RS-485 communication function
RS-485 communication (MODBUS® RTU) enables you to configure various settings and check the operating status.
The frequency and output power settings, as well as the oscillation status, can be read out, which can be used in preventive maintenance.
* MODBUS is the registered trademark of Schneider Electric USA, Inc.
Optimum and stable cleaning
The digital control system enables automatic frequency tracking and constant power output,
which ensures that ultrasonic wave oscillation is performed at the optimum frequency with stable and constant output in response to fluctuations in the load,
such as the liquid depth, liquid temperature, liquid type, decompression status, and workpiece status. As a result, optimum cleaning is achieved.
Easy maintenance
When the transducer unit is replaced by one with the same specifications, there is no need to calibrate the generator.
Applications
●Cleaning of ICs, transistors, silicon wafers, photomasks, etc.
●Cleaning of printed circuit boards, hard disk components, LCD glass, etc.
●Cleaning of pistons, fuel pumps, electrical parts, etc.
Mainly, 28 kHz is suitable for powerful cleaning of stubborn dirt, while 40 kHz is suitable for precision cleaning with less unevenness and damage.
Specifications

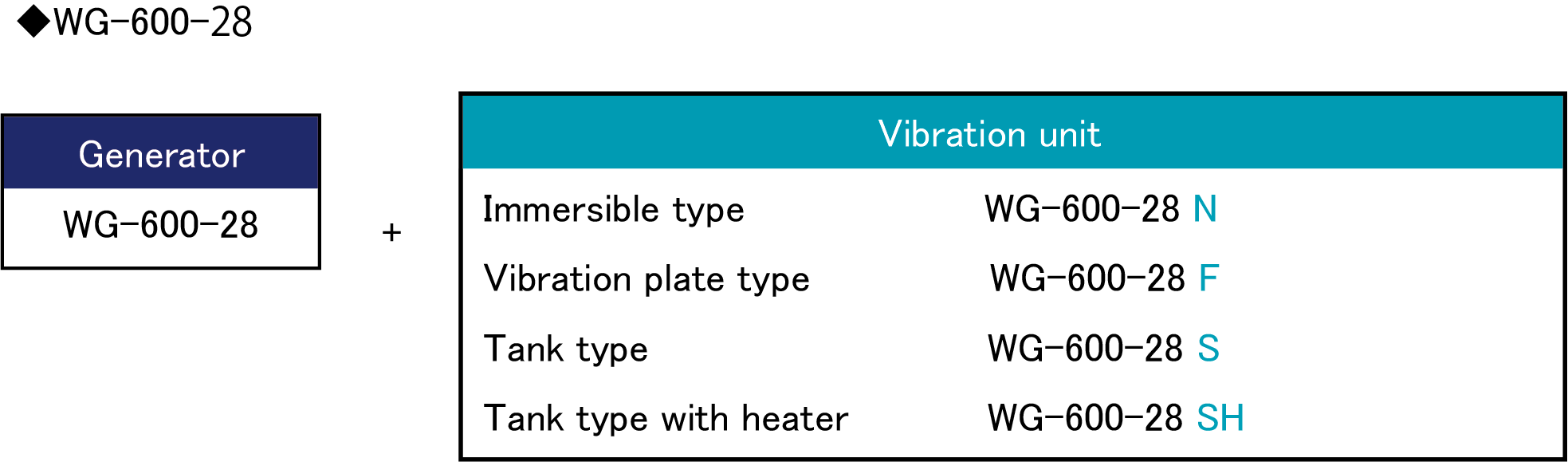

[Example of combination]
Generator
| Model | WG-600-28 | WG-600-40 | WGA-1200-28 | WG-1200-40 | |
| Oscillation method | Adjacent dual-frequency switching oscillation (DUAL) FM oscillation (FM) Single frequency oscillation (SINGLE) Pulse oscillation (PULSE) AM oscillation (AM)*1 |
||||
| Rated output | DUAL/FM | 400W | 800W | ||
| SINGLE | 600W | 1200W | |||
| PULSE | 375W | 750W | |||
| Nominal oscillation frequency | 28kHz | 40kHz | 28kHz | 40kHz | |
| Power input | Select from AC200V, 220V, 230V, 240V (when ordering) Single phase 50/60Hz 1200VA |
Select from AC200V, 220V, 230V, 240V (when ordering) Single phase 50/60Hz 2400VA |
|||
| Interface | Analog output | 4-20mA current output | |||
| Contact output | 2 contacts Alarm output, oscillation detection output | ||||
| External drive input | Ultrasonic oscillation ON/OFF (contact input) | ||||
| RS485 communication | MODBUS (RTU) protocol *2 | ||||
| External Dimensions WxDxHmm |
336ｘ400ｘ125 （Excluding protruding parts, including rubber feet） |
||||
| Weight | 5.4kg | 6.8kg | 5.4kg | ||
●DUAL/FM frequency modulation range: Center frequency ±1kHz
●Variable output range: 20-100
●Output indication: output power (W), Error message
●Timer: 1 to 90min (1min increment)
●Ambient operating environment: Temperature: 5 to 40°C, humidity: 5 to 80% (no condensation)
●Power cable length: 3.5m
*1 AM mode is combined with each oscillation mode
*2 Various settings and operating status can be checked via RS485 communication.
Transducer Unit
*Transducer unit can be manufactured with custom specifications, such as decompression, upon request.
N Type ｜ Immersible type
| Model | N06-28A | N06-40A | N12-28A | N12-40A |
| Generator Model No. | WG-600-28 | WG-600-40 | WG-1200-28 | WG-1200-40 |
| Maximum allowable input | 600W | 1200W | ||
| Nominal oscillation frequency | 28kHz | 40kHz | 28kHz | 40kHz |
| Effective cleaning area | 350ｘ200 | 420ｘ300 | ||
| Dimensions WxDxHmm （Excluding protruding parts） |
350ｘ200ｘ100 | 350x200x75 | 420x300x100 | 420x300x75 |
| Material | Case: SUS304 (SUS316L available upon special order) | |||
| Weight | 14kg | 11kg | 18kg | 14kg |
●Liquid temperature range: 5 to 80°C
●Transducer: Bolt-clamped Langevin type transducer
●Transducer cable length: 2.5m (blade part 2m) + output cord 3.5m
F Type ｜ Vibration plate type
| Model | F06-28A | F06-40A | F12-28A | F12-40A |
| Generator Model No. | WG-600-28 | WG-600-40 | WG-1200-28 | WG-1200-40 |
| Maximum allowable input | 600W | 1200W | ||
| Nominal oscillation frequency | 28kHz | 40kHz | 28kHz | 40kHz |
| Effective cleaning area | 350ｘ200 | 420ｘ300 | ||
| Dimensions WxDxHmm （Excluding protruding parts） |
390ｘ240ｘ83 t=3㎜ |
390x240x57 t=3㎜ |
460x340x83 t=3㎜ |
460x340x57 t=3㎜ |
| Material | Plate: SUS304 (SUS316L available by special order) Packing: EPDM t=3mm (Viton, etc. available by special order) |
|||
| Weight | 10kg | 8kg | 16kg | 13kg |
●Liquid temperature range: 5 to 100°C
●Transducer: Bolt-clamped Langevin type transducer
●Transducer cable length: 3.5m + output cord 3.5m
S Type ｜ Tank Type
| Model | S06-28A | S06-40A | S12-28A | S12-40A | |
| Generator Model No. | WG-600-28 | WG-600-40 | WG-1200-28 | WG-1200-40 | |
| Maximum allowable input | 600W | 1200W | |||
| Nominal oscillation frequency | 28kHz | 40kHz | 28kHz | 40kHz | |
| Effective cleaning area | 370x250 | 500x300 | |||
|
Dimensions
WxDxHmm （Excluding protruding parts） |
Externals | 422ｘ302ｘ405 (Including rubber feet） |
550ｘ350ｘ402 (Including rubber feet） |
||
| Inside a tank | 370ｘ250ｘ250（23L) | 500ｘ300ｘ224（35L) *1 | |||
| Material | Tank: SUS304 (SUS316L available by special order) | ||||
| Drain valve | Rc 1/2 | Rc 3/4 | |||
| Weight | 22kg | 19kg | 39kg | 34kg | |
■Accessories: Lid
●Liquid temperature range: 5 to 100°C
●Transducer: Bolt-clamped Langevin type transducer
●Transducer cable length: 3.5 m
●Optional accessory: Cleaning basket (KG10F, KG11T)
*1The basket is sloped for better drainage.
SH Type ｜ Heated tank type
| Model | SH06-28A | SH06-40A | SH12-28A | SH12-40A | |
| Generator Model No. | WG-600-28 | WG-600-40 | WG-1200-28 | WG-1200-40 | |
| Maximum allowable input | 600W | 1200W | |||
| Nominal oscillation frequency | 28kHz | 40kHz | 28kHz | 40kHz | |
| Effective cleaning area | 370x250 | 500x300 | |||
| Heater | AC200V Single phase 50/60Hz 2kW |
AC200V Single phase 50/60Hz 3kW |
|||
|
Dimensions
WxDxHmm （Excluding protruding parts） |
Externals | 580ｘ310ｘ406 (Including rubber feet） |
710ｘ360ｘ405 (Including rubber feet） |
||
| Inside a tank | 370ｘ250ｘ250（23L) | 500ｘ300ｘ224（35L) *1 | |||
| Material | Tank: SUS304 (SUS316L available by special order) | ||||
| Drain valve | Rc 1/2 | Rc 3/4 | |||
| Weight | 28kg | 25kg | 46kg | 40kg | |
■Accessories: Lid
●Liquid temperature range: 5 to 100°C
●Transducer: Bolt-clamped Langevin type transducer
●Transducer cable length: 3.5 m
●Optional accessory: Cleaning basket (KG10F, KG11T)
*Heater is for water heating only. Please refrain from using it with anything other than water.
*A separate power supply is required to drive the heater.
*1The drainage is sloped for better drainage.
