HS-2700V

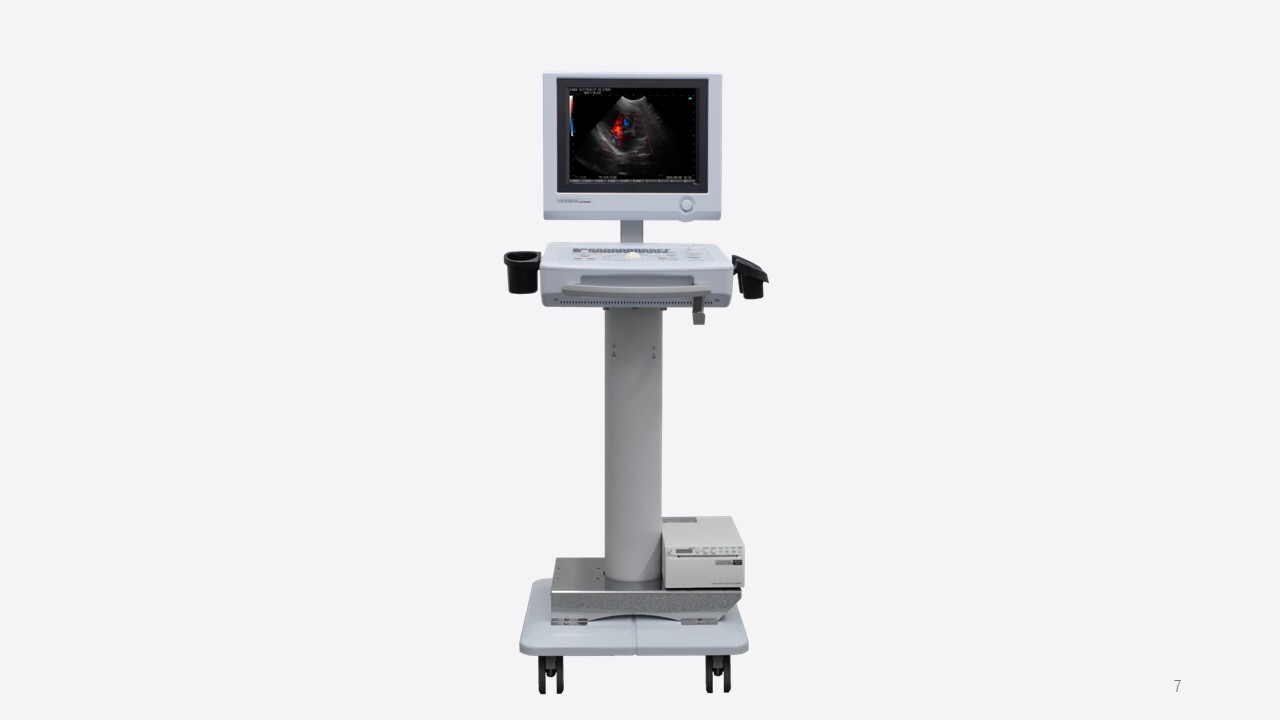

HS-2700V本体
*video printer is not included

Overview

Introduction Viode

Japan made Doppler ultrasound system for small animals.

small animals

  • 12. 1 inch high-resolution LCD.

  • Simple and easy-to-use keyboard design.

  • Sharp and smooth image display by H-res.

  • Large casters allow even women to move it easily.

Ultrasound image

H res

Excellent ultrasound images

Our original image enhancement technology
H-res (Our Resolution Technology)
The development of ultrasound technology over the years, crystallized into the image enhancing technology as "H-res".
Optimum image can be achieved by adjusting the "H-res" parameter for each application and probe.

*Resolution visualizes delicate tissue structure in shallower region.
*Penetration visualizes good resolution in deeper organs.
*Boundary visualizes bones for observation.
*Clarity reduces the noise in blood vessel.
*Mild reduces the image enhancement effect.
*OFF has direct ultrasound image.

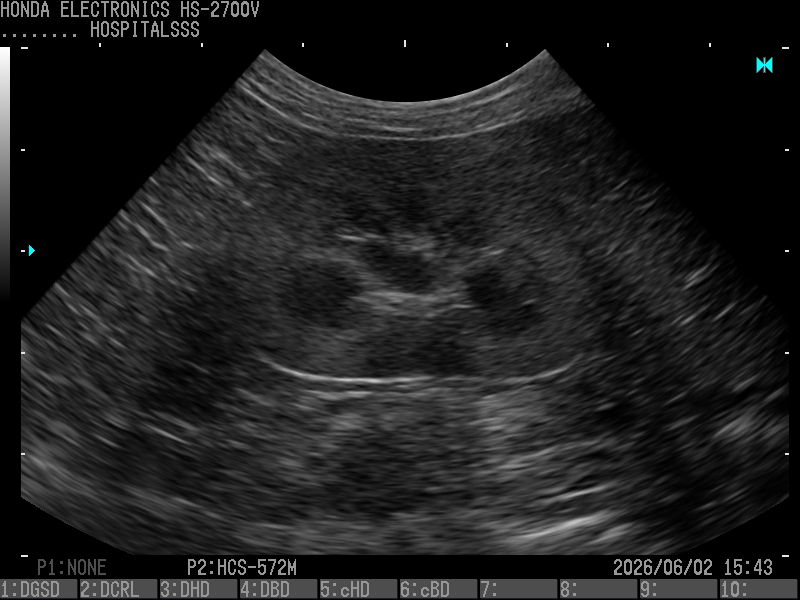

1猫腎臓トリミング

Body Part:Kidney (cat)

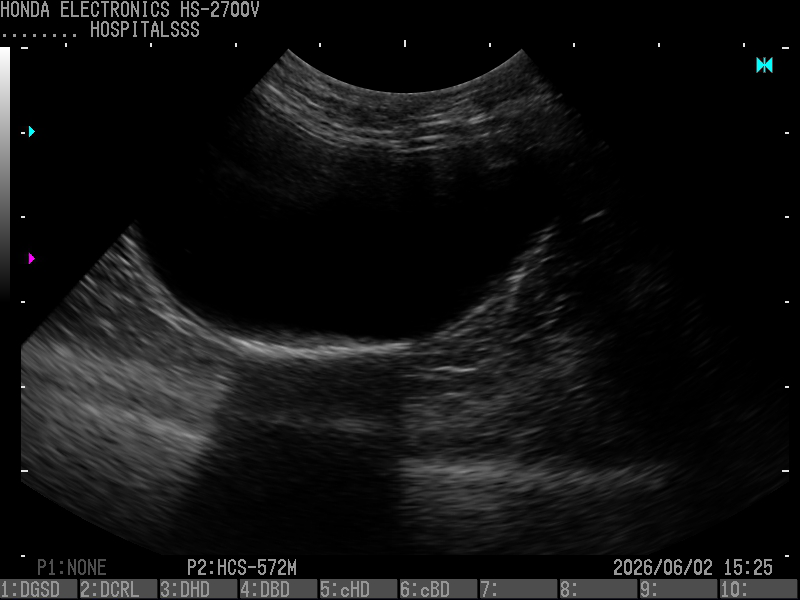

2猫膀胱(底に砂付)トリミング

Body Part:Bladder (cat)

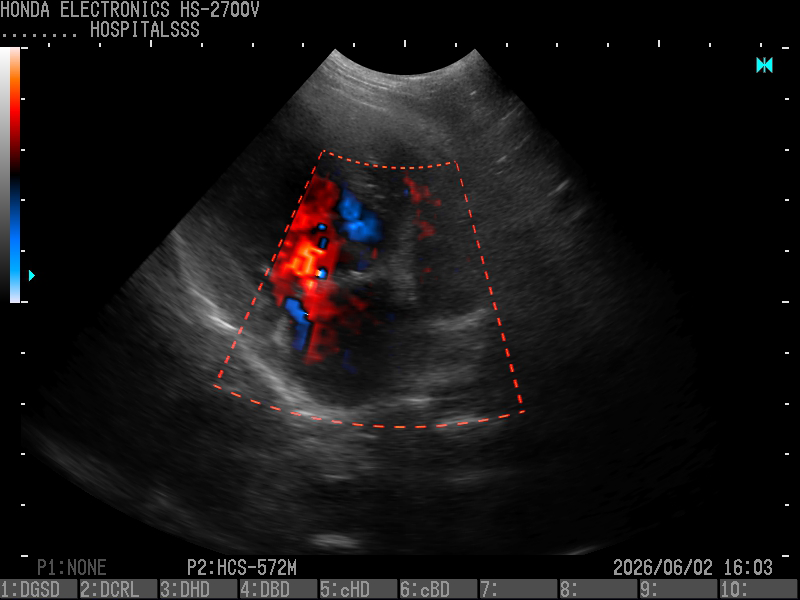

3柴犬心臓逆流 トリミング

Body Part:Heart (dog)

Doppler mode

HS-2700V supports CFM(Color Flow Mapping) and PD(Power Doppler)modes.
They will adapt to a wide range of medical application.

4

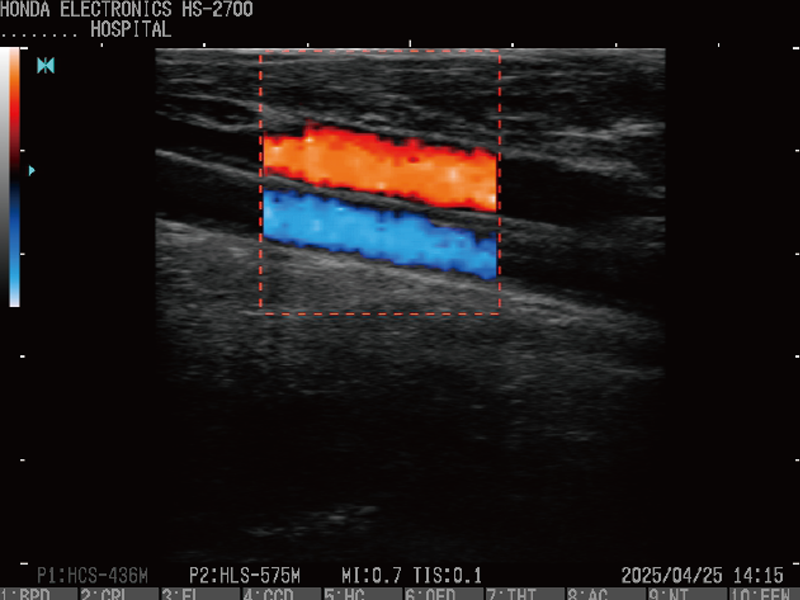

CFM(Color Flow Mapping)
Probe：HLS-594M
H-res：Anatomy

5

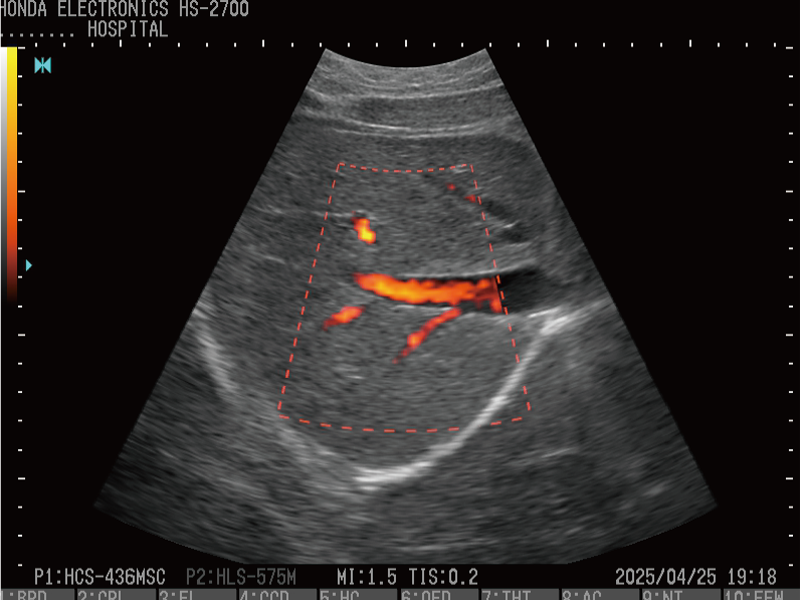

PD(Power Dopller)
Probe：HLS-594M
H-res：Anatomy

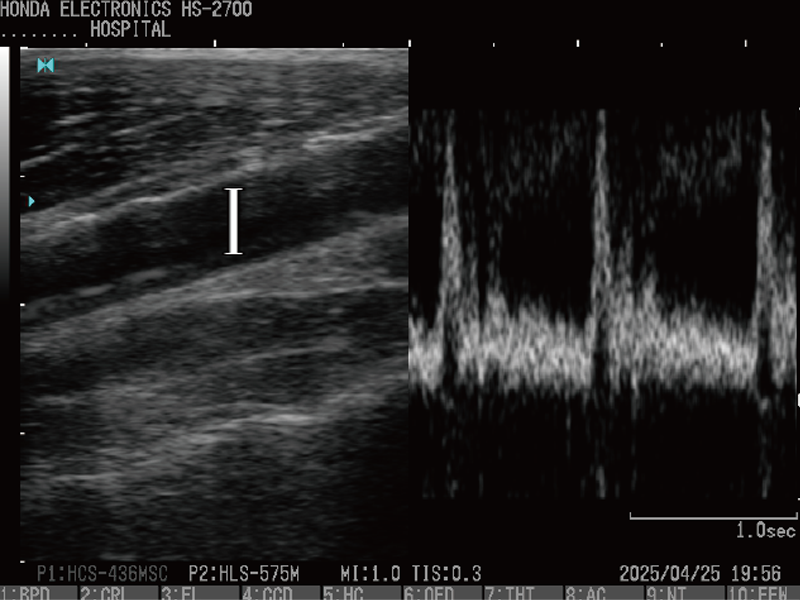

6

PW(Pulse Doppler)
Probe：HLS-594M
H-res：Anatomy

Preset Register

Favorite settings can be easily registered and recalled.

Body mark

Body mark

A variety of body marks are provided, enabling easy identification and storage of diagnostic area.
*Sample pictures.

Data Storage

USB port

Movie file and still image can be stored to the USB memory and accessed in personal computers.
Approx. 100 images are stored in the system memory.

Catalogue

HS-2700V表紙1P

Free Download

You can download our product catalog in PDF format from this button.
We hope you will find it useful.

Read more

Specifications

 Scanning Method
  Convex / Linear Electronic Scan
 Number of Probe Channel
  96 Channels,128 Channels

 Number of Simultaneous   Drive

Transmitter 64 Channels (Max)

Receiver : 32 Channels (Max)

 Display Mode    B Mode, B/B Mode, B/M Mode, B/Z Mode, M Mode

  Range 3.5MHz 5MHz or  more

 0-2-24cm (1cm Step Adjustable)

 0-2-16cm (1cm Step Adjustable)
 Focusing Method

4-stage Transmission Focus

Continuous Dynamic Receiving Focus

        Rated Ultrasound  Frequency    2.8, 3.5, 5.0, 7.5, 9.0, 10.0, MHz
 Display Monitor

 12.1inch color LCD
         Acoustic Power Adjustment

 20-100% (10% Step Adjustable)
 Gray Scale    256 Levels
 Image Display
  Up/Down, Left/Right
 Doppler
  CFM(Color Flow Mapping), PD(Power Doppler) , PW(Pulse Wave Doppler)
 Image Adjustment

B-Gain: 36-100dB (1dB Step Adjustable)

M-Gain: 36-100dB (1dB Step Adjustable)

B-Dynamic Range: 35-95dB (1dB Step Adjustable)

M-Dynamic Range: 35-95dB (1dB Step Adjustable)

Doppler-Gain: 15-100 (5 Step Adjustable)

Doppler-Speed Range: 1/2, 1, 2, 4, 8, 16

STC: 8 segments

 γcorrection 5 type

H-res: OFF, Detail1, Detail2, Detail3, Mild, Resolution,

(Image Enhancement) Penetration, Clarity, Boundary, Anatomy

 Sweep Speed in M Mode

1/1, 1/2, 1/4, 1/8, 1/16(*)

*B/M-Mode: (1/1) is 1 second per frame.

*M-Mode : (1/1) is 2 seconds per frame.

 Measuring Function

Distance : 8 Measurements (Max)

Area/Circumference : 4 Measurements (Max)

Volume : 1 Measurements

       Diagnosis/Graph Display

 DGSD、DCRL、DHD、DBD、cHD、cBD
 Data Storage

Still Image (JPEG): Internal (200 Images max.) / External USB memory

ditto (DICOM) : Internal (200 Images max.) / External USB memory

Moving Image (AVI) : Internal (10 videos max.) / External USB memory
 Character Display

Hospital Name (40 Characters),

ID Information (ID: 26 Characters, Name: 30 Characters, Age),

Date, Time, Probe Type, Current Setting Information

 Power Source
 AC Adapter: AC100-240V,50Hz/60Hz 15VDC,100VA
 Dimension
  500mm(Width)× 480mm(Depth)）× 1200mm(Height)
 Net Weight    Net Weight: Approx. 20kg (Excluding probe)
 Probes

Micro Convex Probe

9.0/7.5/5.0 MHz 20R HCS-572M

Convex Probe
5.0/3.5/2.8 MHz 60R HCS-436M, HCS-436MSC

Linear Probe

10.0/7.5/5.0MHz 50mm HLS-575M

 Accessories    AC Adaptor, Power Cable, Ultrasound Gel

Probe

Micro Convex Probe

Micro Convex Probe
Type name HCS-572M
Frequency 9.0/7.5/5.0MHz
Radius (sensor part) 20R
Cable length 2m

Linear Probe

Linear Probe
Type name HLS-575M
Frequency 10.0/7.5/5.0MHz
Width (sensor section) 50mm
Cable length 2.2m

Convex probe

Convex probe
Type name HCS-436M
Frequency 5.0/3.5/2.8MHz
Radius (sensor part) 60R
Cable length 2m
Convex probe
Type name

HCS-436MSC

*Single crystal probe
Frequency 5.0/3.5/2.8MHz
Radius (sensor part) 60R
Cable length 2m

Gallery

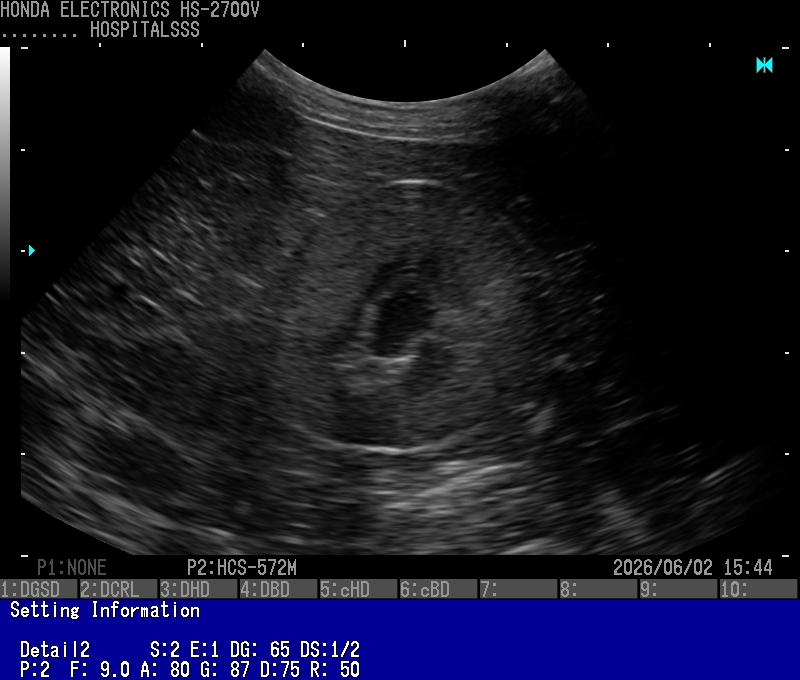

7Kidney Short axis (Shiba Inu)

1．Liver (poodle, 12 years old)

　Probe：HCS-572M

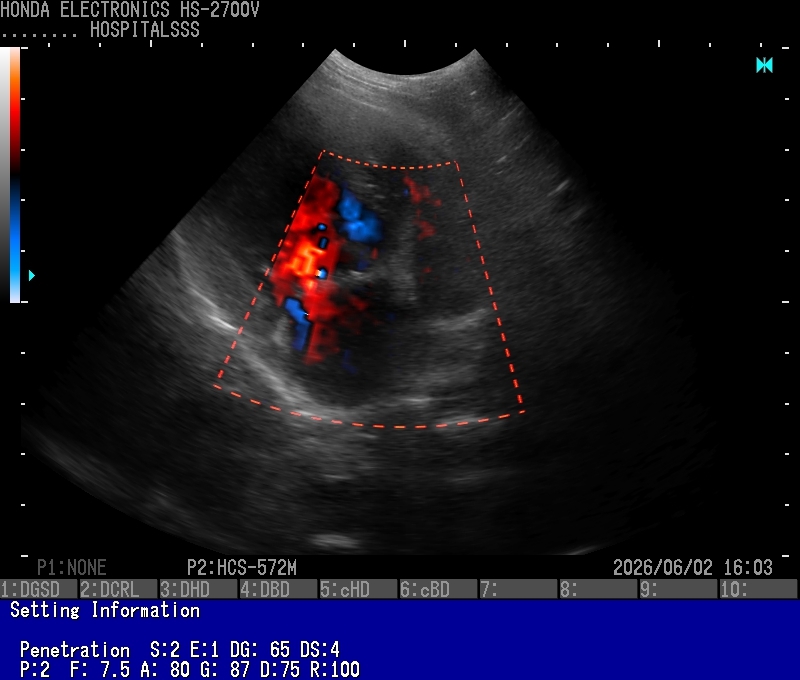

8Valvular regurgitation (Shiba inu)

2．Adrenal glands (poodle, 12 years old)

  　Probe：HCS-572M

 　

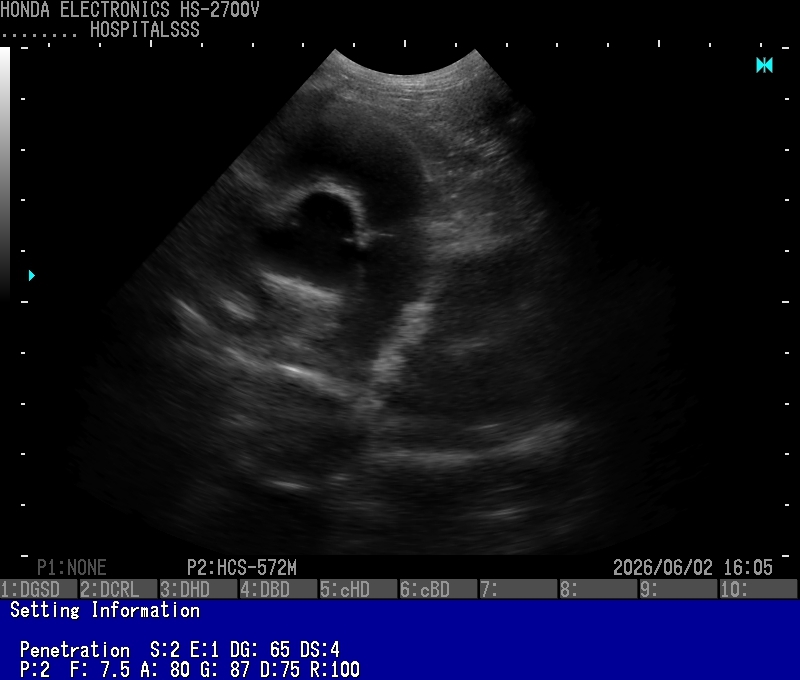

9Heart (Shiba Inu)

3．Pancreas (Vision Frise, 8 years old)

    Probe：HCS-572M

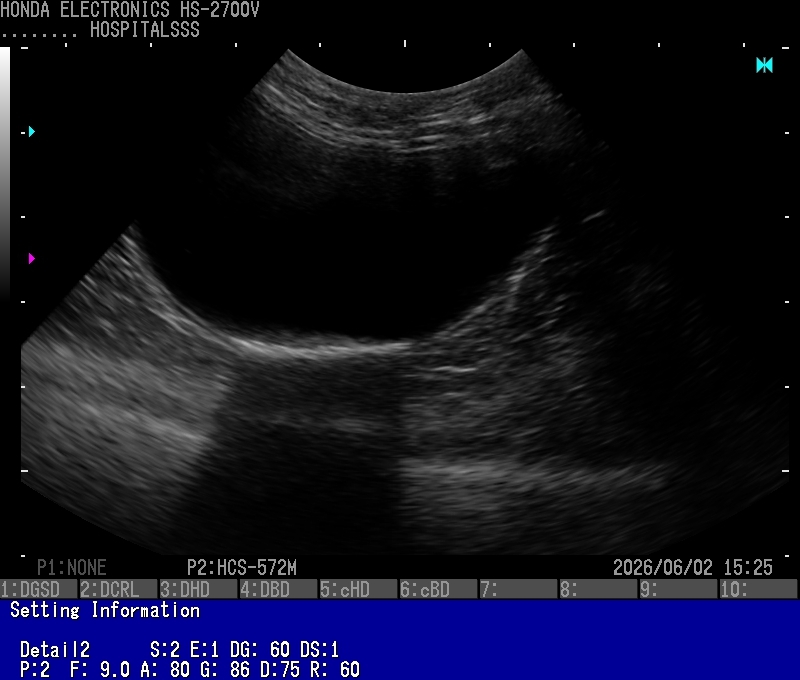

10Feline bladder with sediment(Cat)

4.Kidney (cat, age 10)

  Probe：HCS-572M

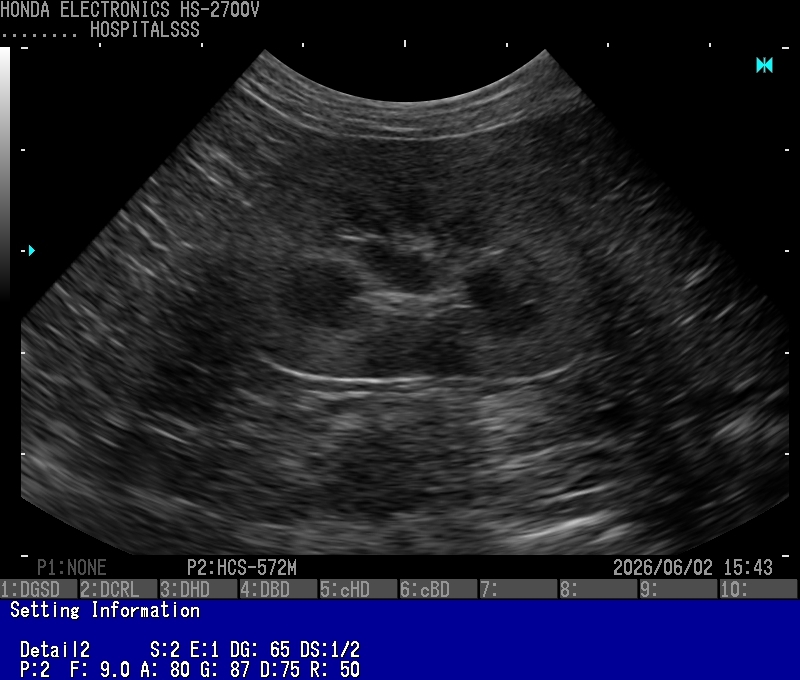

11Kidney(Cat)

5.Kidney (cat, age unknown)

　Probe：HCS-572M
